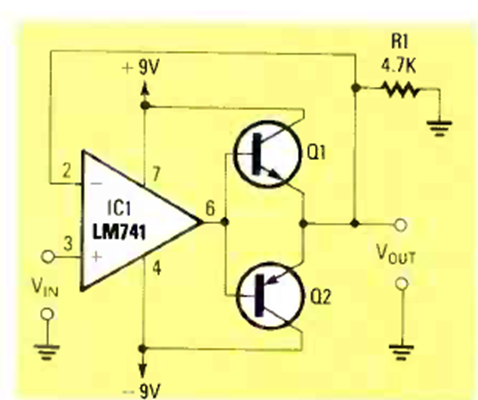

Bidirectional Current Booster LM741 (CB25926E)

Details
Written by: Newton C. Braga



This circuit was found in the May 1989 issue of Radio Electronics magazine. The circuit requires a symmetrical source and, with the transistors used, the maximum current is around 50 mA.
