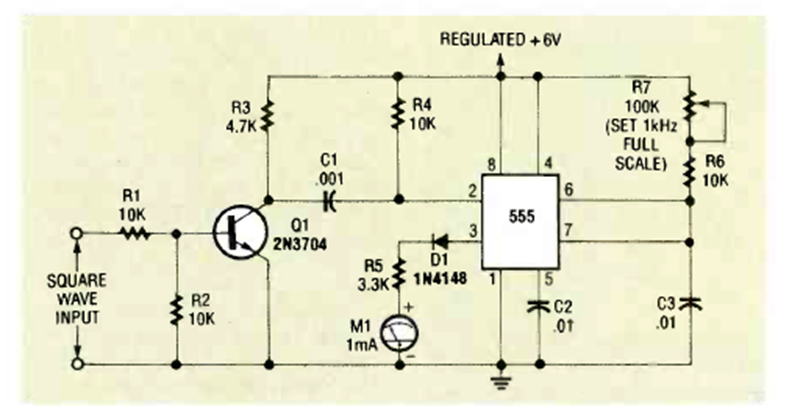

This linear scale circuit can use the current scale of a multimeter instead of the 50 uA instrument. The circuit is from a Radio Electronics magazine from December 1992. The maximum frequency is on the order of 500 kHz.
