Simple Flashlight Using LM3909 (CB25428E)

Details
Written by: Newton C. Braga

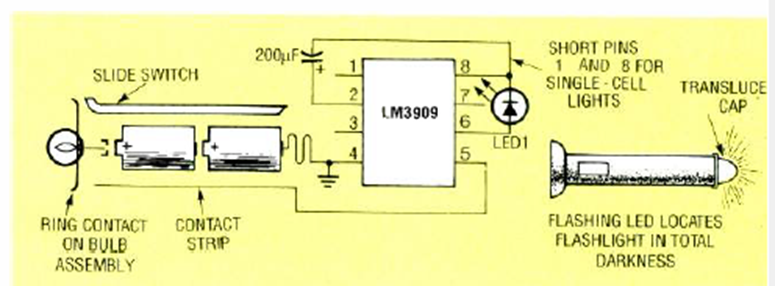

This flashlight project with a blinking light that makes it easy to find was found in the January 1990 issue of Radio Electronics magazine. The light uses a common light bulb.




| Clique na imagem para ampliar |
