High Q Filter (CB25362E)

Details
Written by: Newton C. Braga

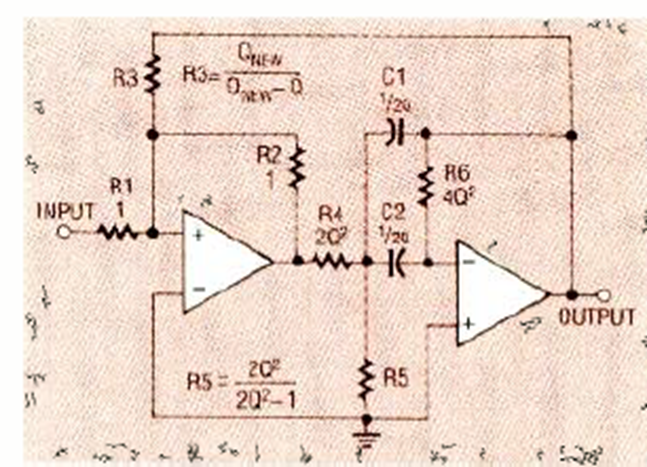

This 1/2 hertz high selectivity filter was found in the December 1990 issue of Radio Electronics magazine. The source must be symmetrical. The capacitors can be changed for other frequencies.
