Bridge amplifier up to 12W (CB25941E)

Details
Written by: Newton C. Braga

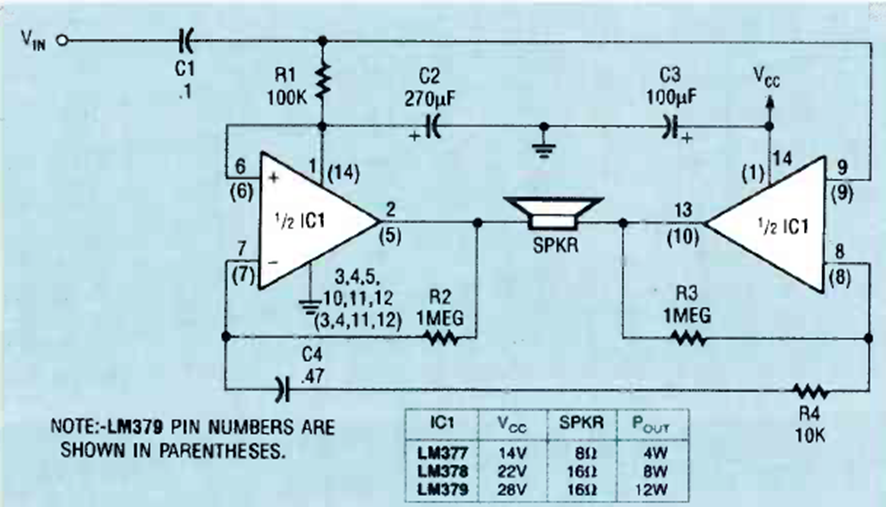

With several integrated circuit options, this amplifier can provide different powers depending on the choice of integrated circuit. We found it in the Radio Electronics magazine of April 1990.
