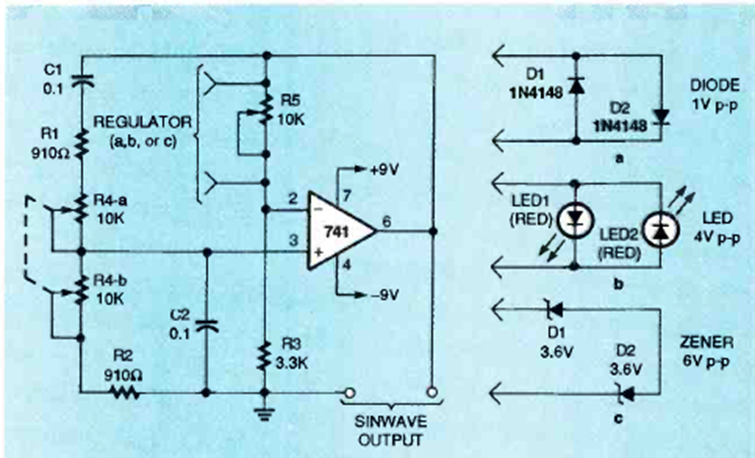

150 Hz to 1.5 kHz Wien Bridge Oscillator (CB25907E)

Details
Written by: Newton C. Braga



This circuit was found in the December 1995 issue of Electronics Now magazine. The circuit requires a symmetrical source and provides sinusoidal signals. Other operational amplifiers can be used.
