Adder with the 741 (CB25794E)

Details
Written by: Newton C. Braga

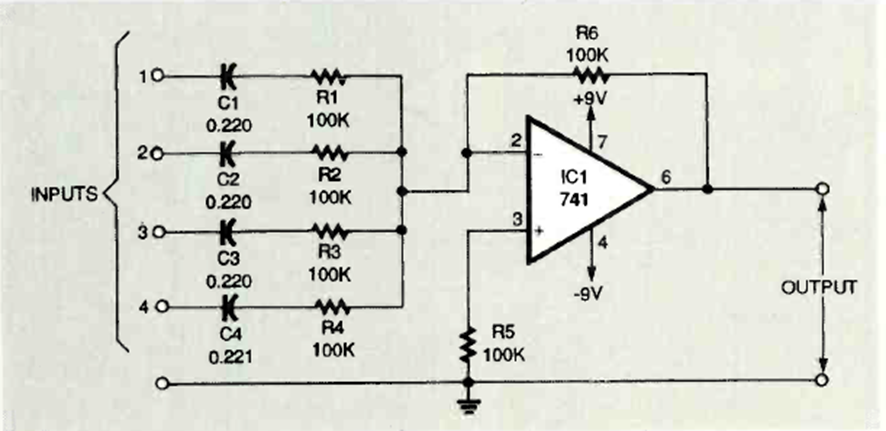

More inputs can be added to this adder that we found in the January 1995 Electronics Now magazine. Other operational ones can be used.
