FM Transmitter (CB25408E)

Details
Written by: Newton C. Braga

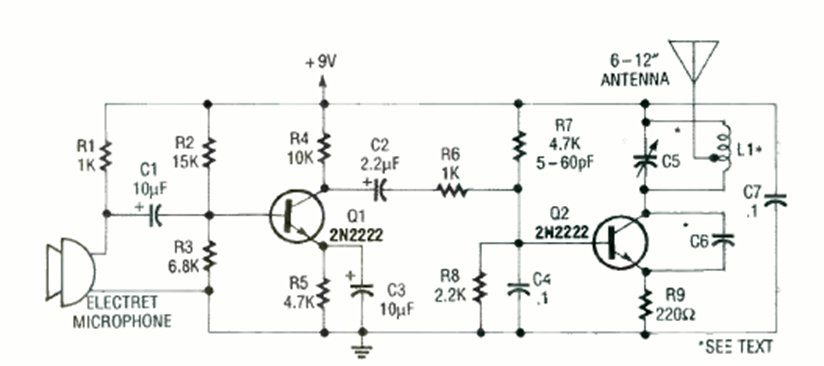

This simple two-transistor FM transmitter was found in the November 1991 issue of Radio Electronics magazine. The circuit has a 2 + 2 turn coil of 28-gauge wire with a diameter of 1 cm.




| Clique na imagem para ampliar |
