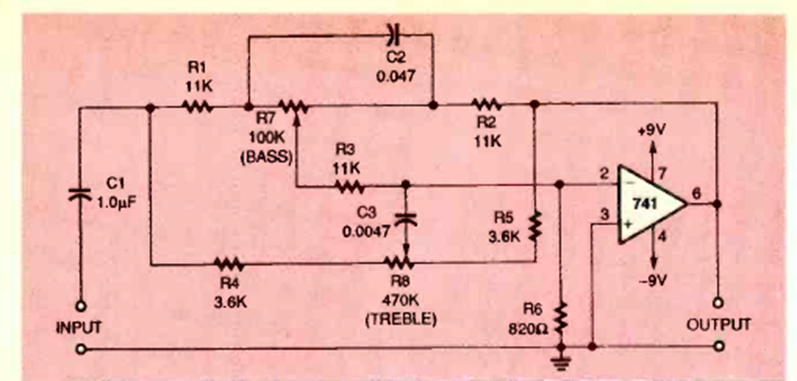

Active Tone Control 741 (CB25835E)

Details
Written by: Newton C. Braga



This circuit incorporates the passive control of the previous circuit and was also found in the March 1995 Electronics Now magazine. The power supply must be symmetrical.
