Car Battery Power Supply (CB25689E)

Details
Written by: Newton C. Braga



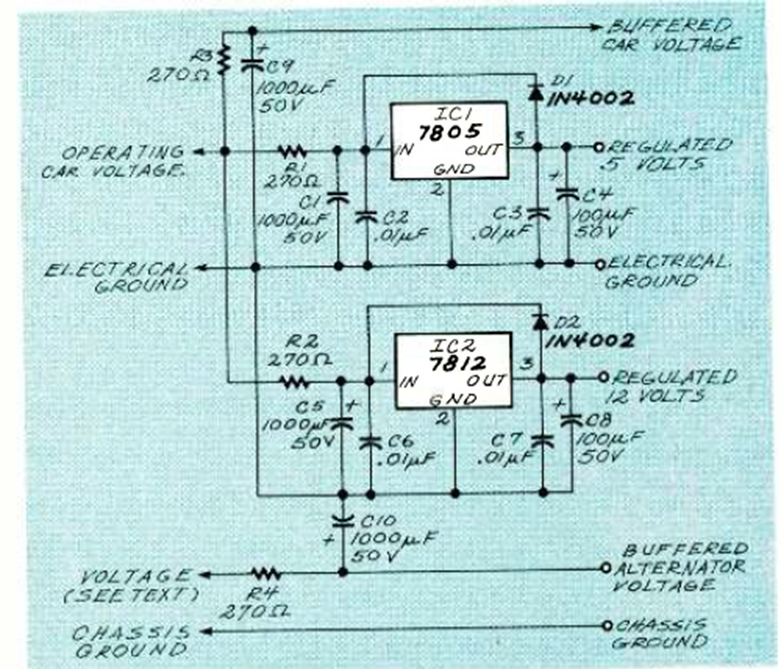

This circuit was found in the February 1994 issue of Electronics Now magazine. The circuit uses 6 and 12 V regulators that must be equipped with heat sinks. The current is 1A (max).
