Logic test with sound (CB25389E)

Details
Written by: Newton C. Braga

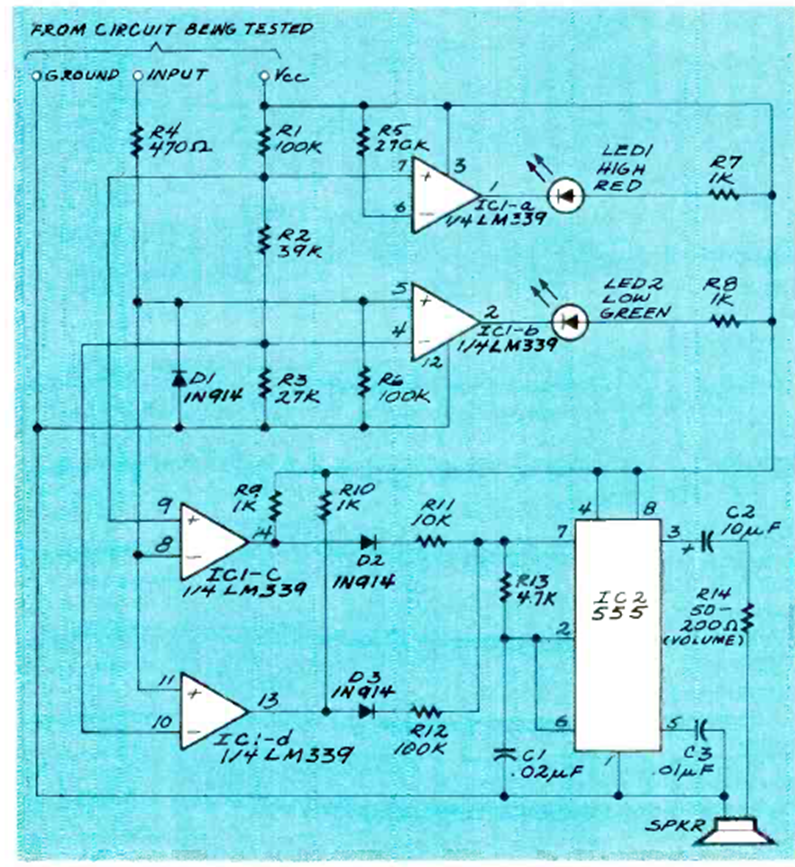

This circuit has visual and audible status indication using an oscillator. The circuit is from a Radio Electronics magazine from June 1991.




| Clique na imagem para ampliar |
