LED VU KA2283 (CB25369E)

Details
Written by: Newton C. Braga

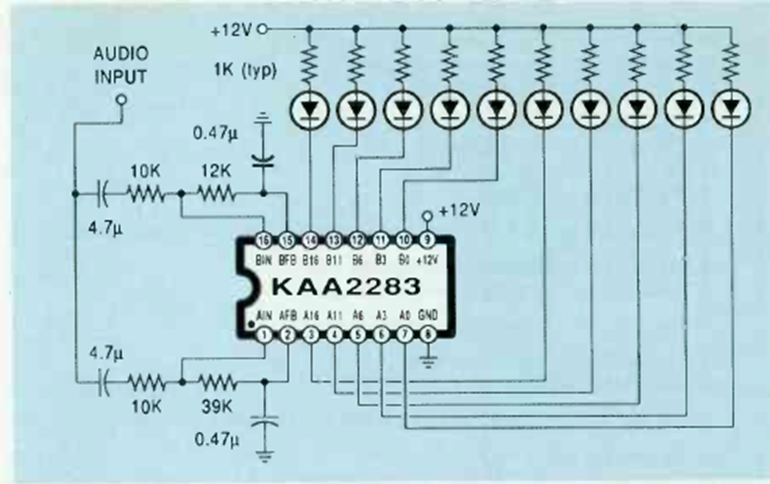

This mono circuit for 10 LEDs was found in the January 1991 Radio Electronics magazine. It is powered by 12 V.
