Monostable (CB25117E)

Details
Written by: Newton C. Braga

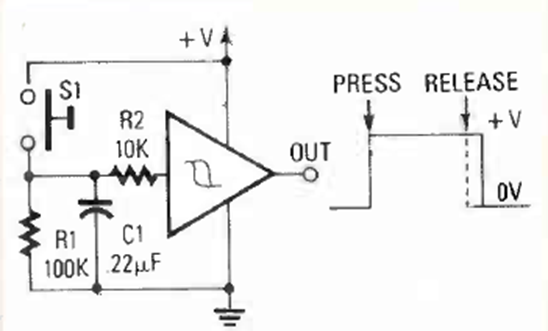

The circuit used is the 4093 configured as an inverter in this application from Radio Electronics from April 1988. The capacitor can be changed.
