Crystal Signal Generator (CB6189E)

Details
Written by: Newton C. Braga

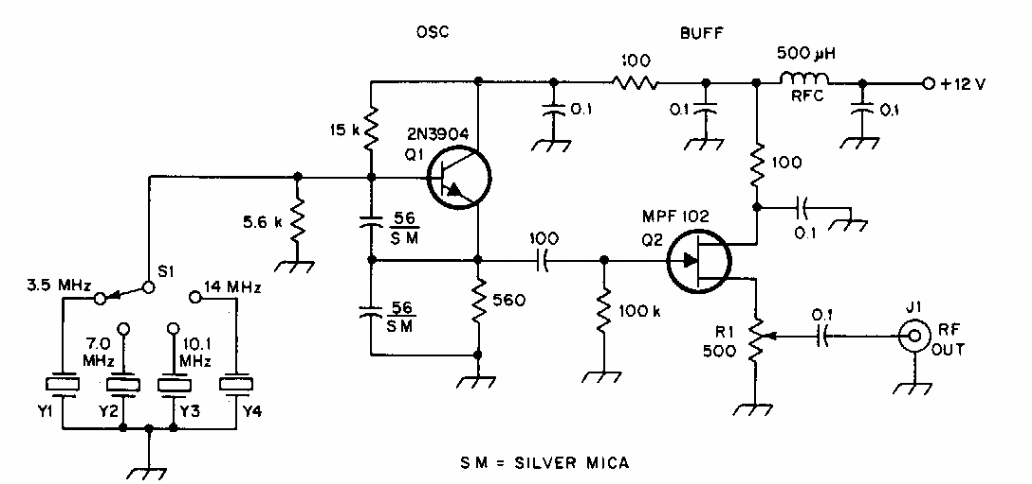

     This QST circuit generates 4 frequency signals according to the crystals used. Transistors admit equivalents although the indicated types can still be found with some ease.




| Clique na imagem para ampliar |
