Sound Activated Relay (CB5989E)

Details
Written by: Newton C. Braga

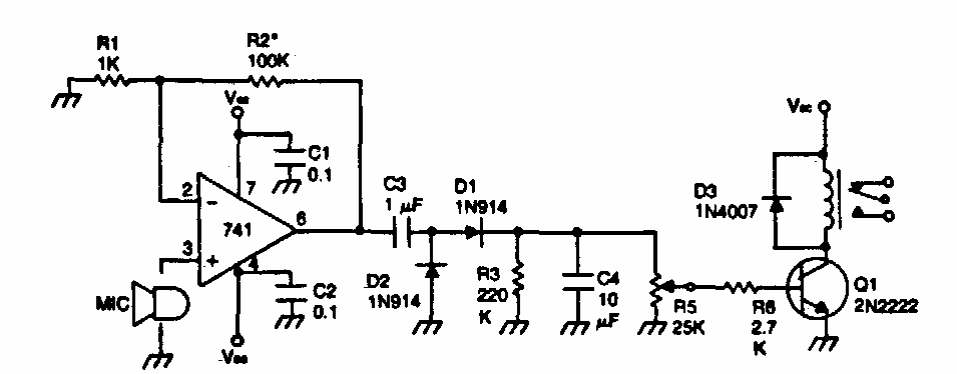

     This circuit makes use of a low impedance microphone. The relay is according to the supply voltage which can be between 9 and 15 V. The operational gain is approximately 100.
