XR2208 Phase Detector (CB24550E)

Details
Written by: Newton C. Braga

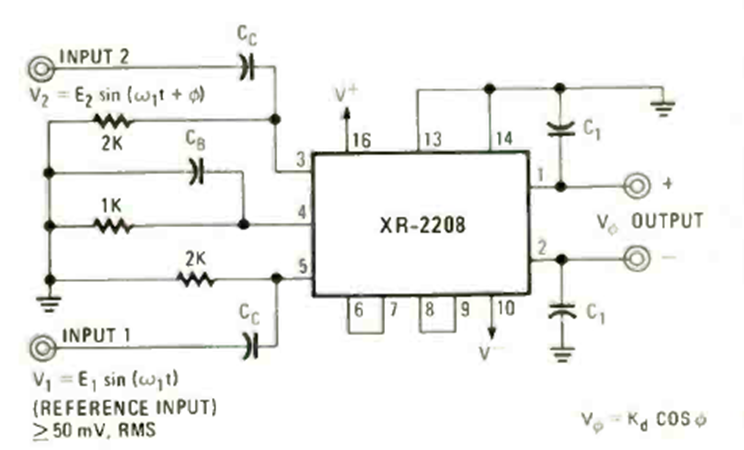

Found in the April 1978 issue of Radio Electronics magazine, this circuit is intended to be powered by a symmetrical 15 V source. The signals are low intensity.




| Clique na imagem para ampliar |
