10 W Amplifier (CB6158E)

Details
Written by: Newton C. Braga

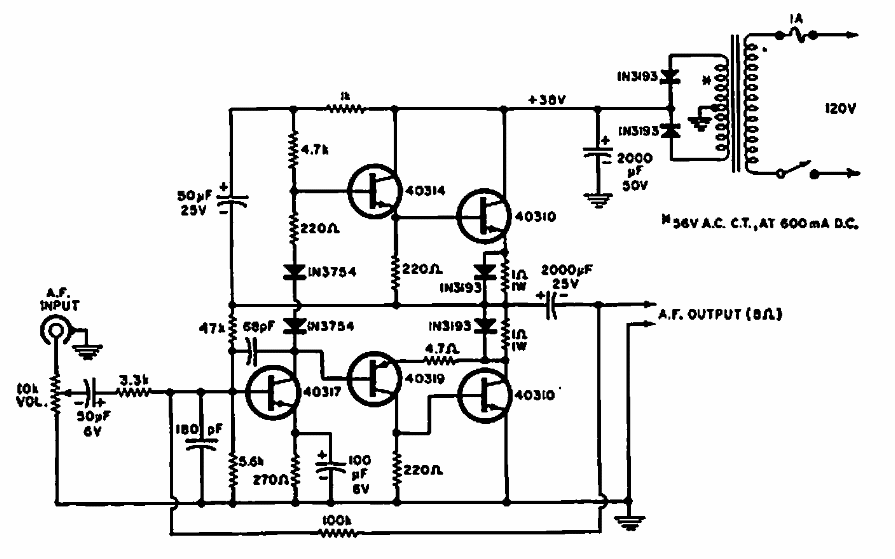

    This high quality circuit with complementary symmetry was found in an Electronics World of 1966. It can be made with modern transistors like the BD or TIP series.
