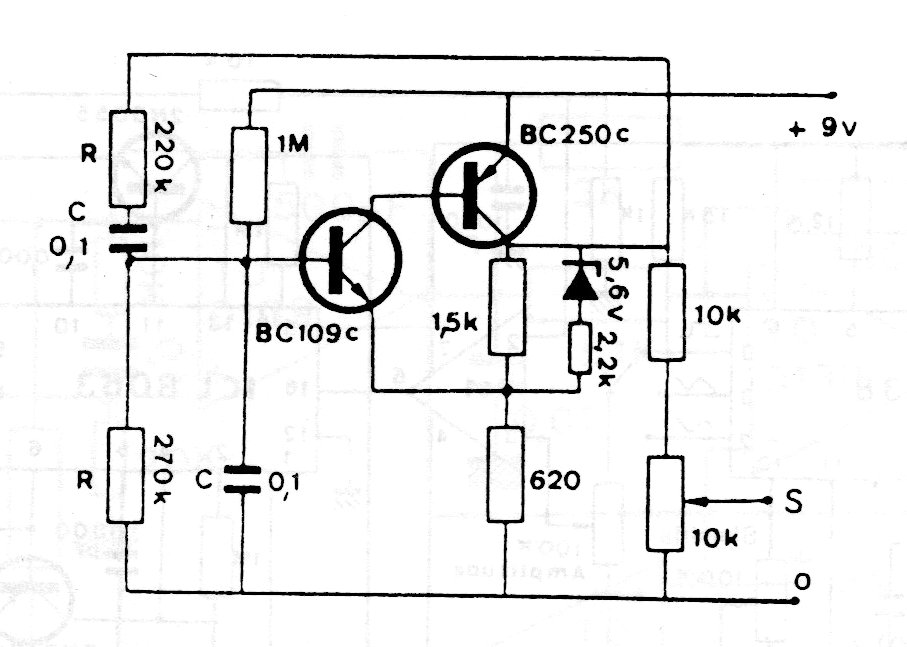

This oscillator with signal amplitude adjustment generates a 6.5 Hz signal with the values of the components used. R and C can be changed to other frequencies. The transistors can be BC549 and BC558 and the supply can be done with voltages of 6 to 12 V typically.
