Wavemeter (CB4118E)

Details
Written by: Newton C. Braga

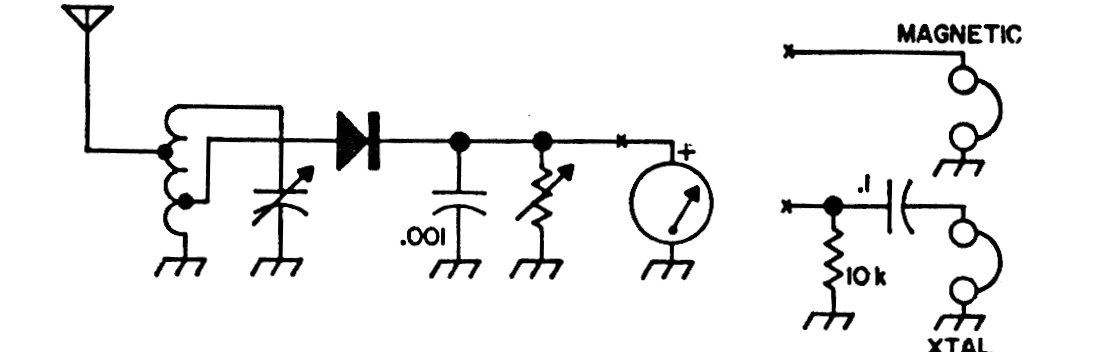

     It actually consists of a tunable field strength meter. The circuit is of an old documentation and the circuit must be tuned to the frequency to be monitored. The circuit offers the option to use a headset.
