SSB Balanced bridge modulator (CB4109E)

Details
Written by: Newton C. Braga

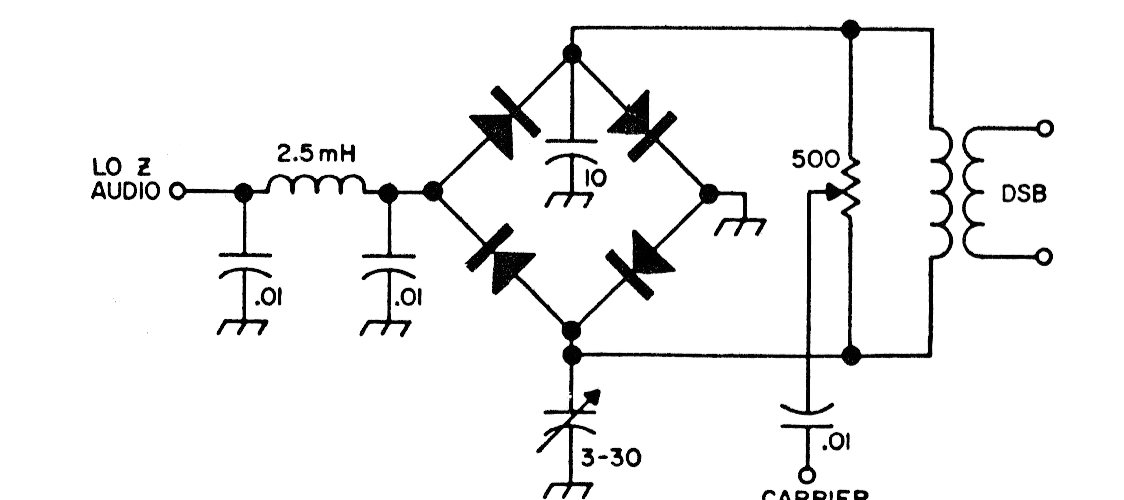

    This circuit is from a 1980's documentation for telecommunications. The circuit is used in SSB and the diodes must be suitable types for the application. The audio input is low impedance.




| Clique na imagem para ampliar |
