Indutor Simulator (CB20747E)
- Details
- Written by: Newton C. Braga

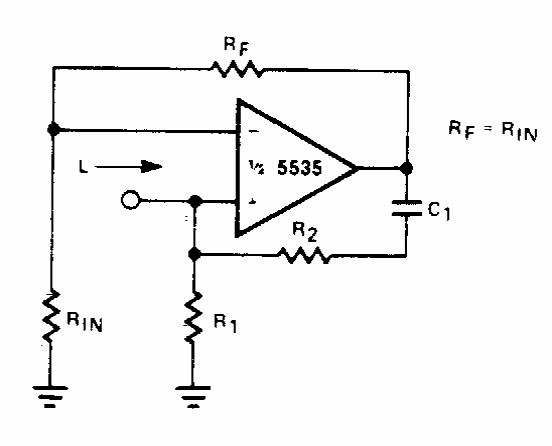

We found this circuit in old documentation. Modern equivalent operational amplifiers can be used. The power supply must be symmetrical. The inductance is given by L = R1 x R2 x C.
