Relay driver (CB20549E)

Details
Written by: Newton C. Braga

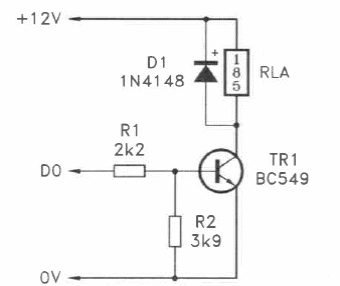

Found a documentation on PCs from 1996, this circuit can be used as a shield. The relay is rated at 100 mA of coil current.
