Beacon with instrument (CB20495E)

Details
Written by: Newton C. Braga

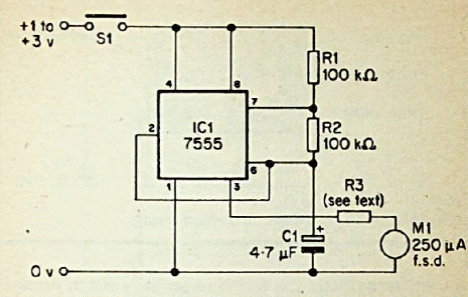

This circuit causes an instrument needle to oscillate to signal an event. The circuit is powered by solar panel from 1 V.
