High Power Alarm (CB20475E)

Details
Written by: Newton C. Braga

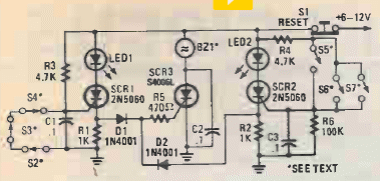

We found this circuit in a Popular Electronics from the 90's. The circuit uses three SCRs to trigger the loads.
