SMD Amplifier (CB26146E)

Details
Written by: Newton C. Braga

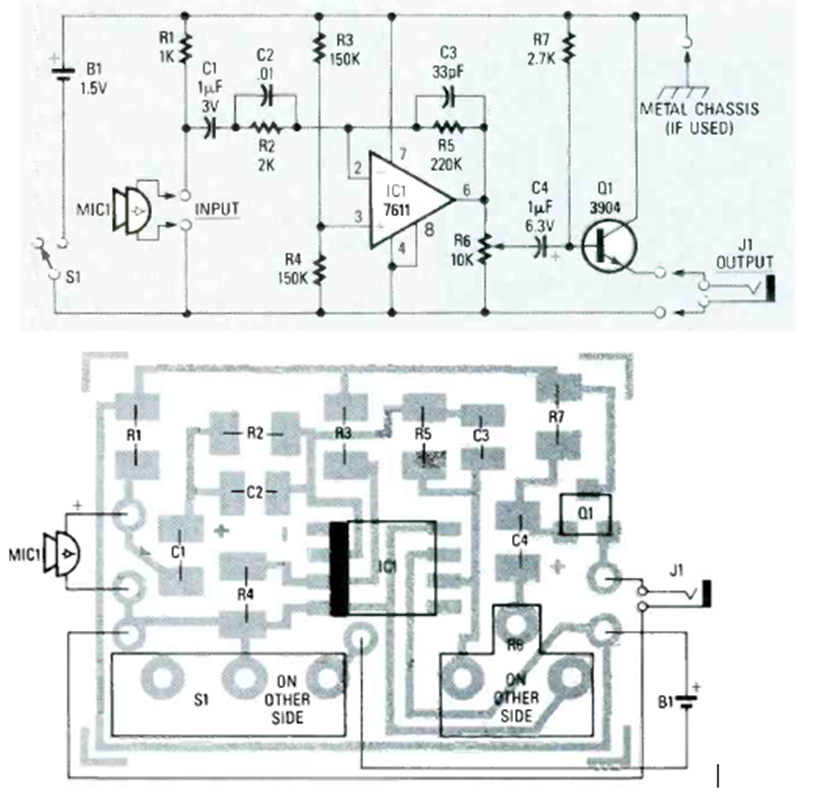

If you have the skills and can get your hands on SMD components, you can assemble this small amplifier. We found it in the Radio Electronics Experimenter special edition from 1990.
