Photometer (CB25982E)

Details
Written by: Newton C. Braga

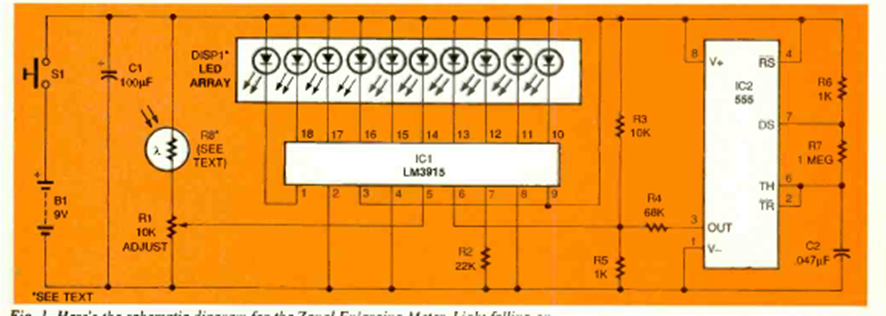

This circuit was found in the November 1966 issue of Electronics Now magazine. It uses an LDR as a sensor and has a Bargraph scale with the well-known LM3914.
