Triac Switch (CB25067E)

Details
Written by: Newton C. Braga

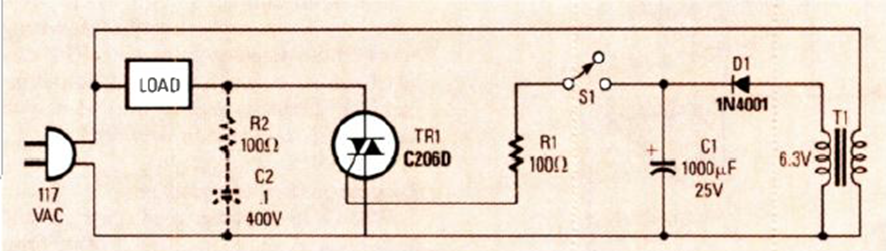

This control circuit using a low voltage switch was found in the September 1987 Radio Electronics magazine. The triac must be matched to the load and the mains voltage.




| Clique na imagem para ampliar |
