LM12 Amplifier (CB26147E)

Details
Written by: Newton C. Braga

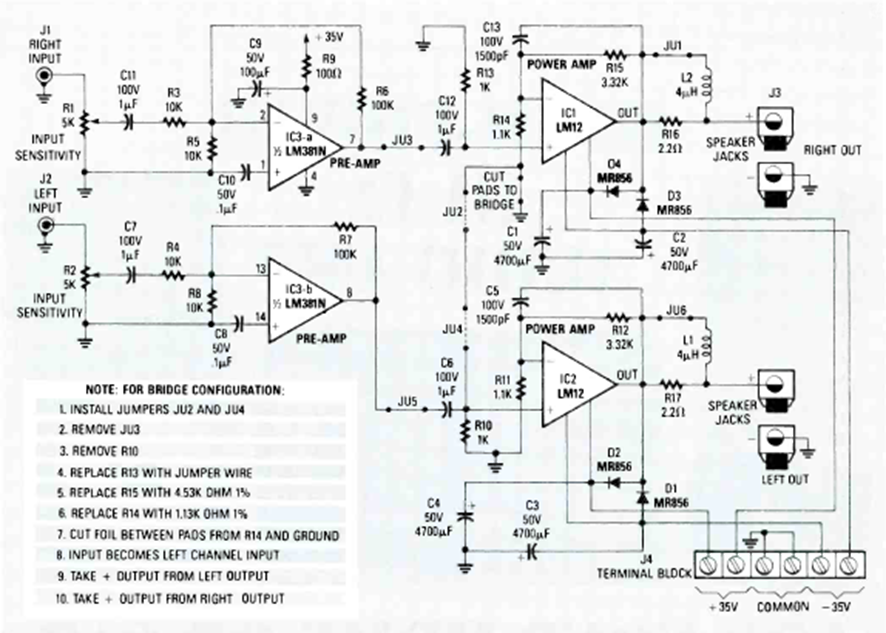

This high-power amplifier with only 4 integrated circuits was found in the 1990 special issue of Radio Electronics Experimenter magazine. The circuit reaches 100 W per channel.




| Clique na imagem para ampliar |
