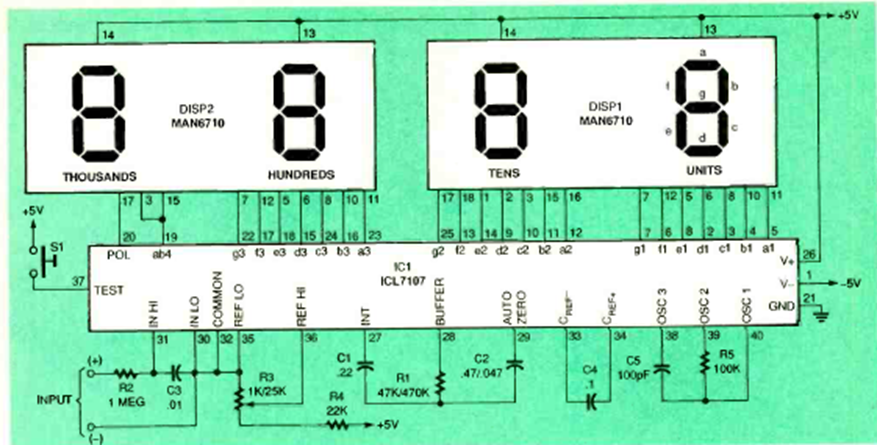

In the figure we have the basic way of using the 3-and-a-half-digit counter 7107. The circuit is from an Electronics Now from November 1996. It uses two dual displays.
| Clique na imagem para ampliar |
Circuit for the 7107 (CB25984E)
- Details
- Written by: Newton C. Braga
