Stereo Multiplexer BA1404F (CB26042E)

Details
Written by: Newton C. Braga

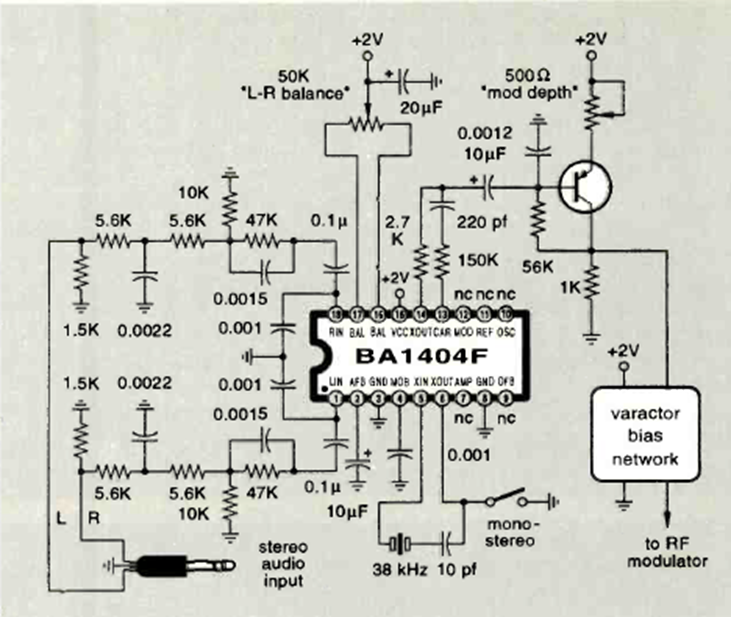

This basic circuit was found in the March 1998 issue of Electronics Now magazine. The circuit is powered by 2V and uses a 28 MHz crystal or resonator.
