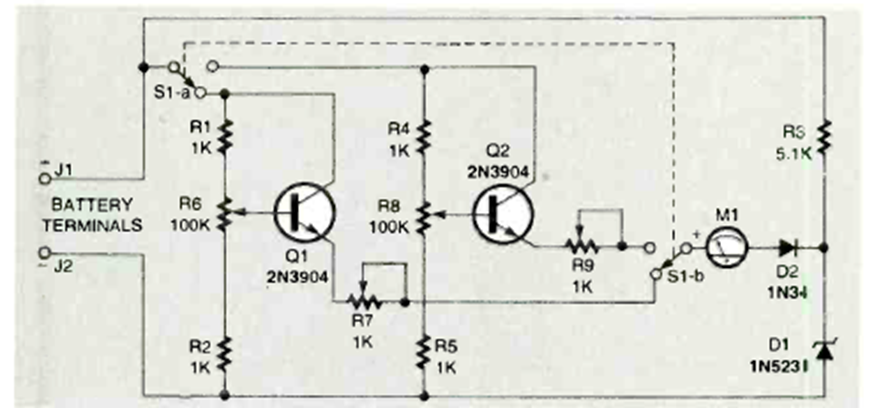

This circuit was found in an article in Electronics Now magazine from March 1997. The transistors are general purpose, and the indicator is a 1 mA full scale analog type.
| Clique na imagem para ampliar |
Battery Charge Indicator (CB26001E)
- Details
- Written by: Newton C. Braga
