28 to 5 V Converter (CB26336E)

Details
Written by: Newton C. Braga

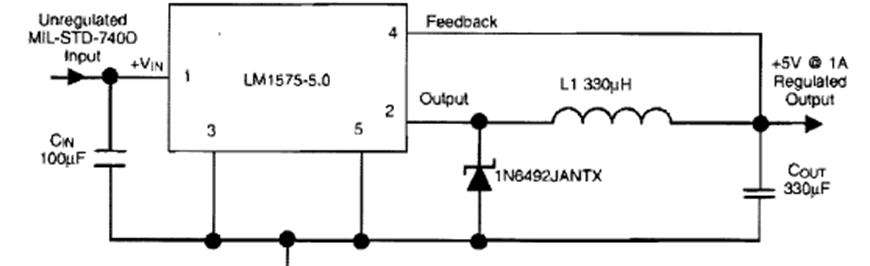

Using the M1575 this switching converter was found in National Semiconductor documentation from the 90s. The circuit has a maximum output current of 1 A.




| Clique na imagem para ampliar |
