Measuring Resistance with the 7107 (CB25987E)

Details
Written by: Newton C. Braga

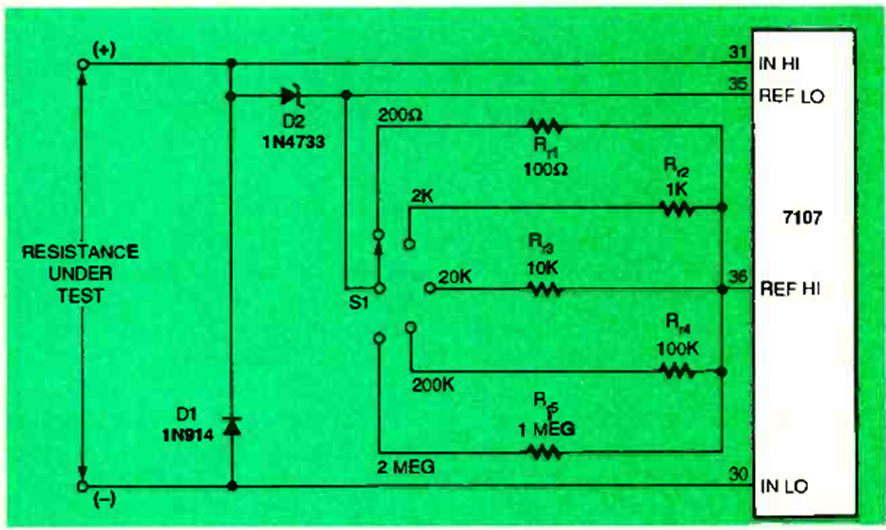

The circuit shown is from the November 1996 Electronics Now magazine. The basic circuit is in the previous 3 sections of this section. The circuit measures resistances up to 2M ohms.






| Clique na imagem para ampliar |
