Speaker Protector (CB26190E)

Details
Written by: Newton C. Braga



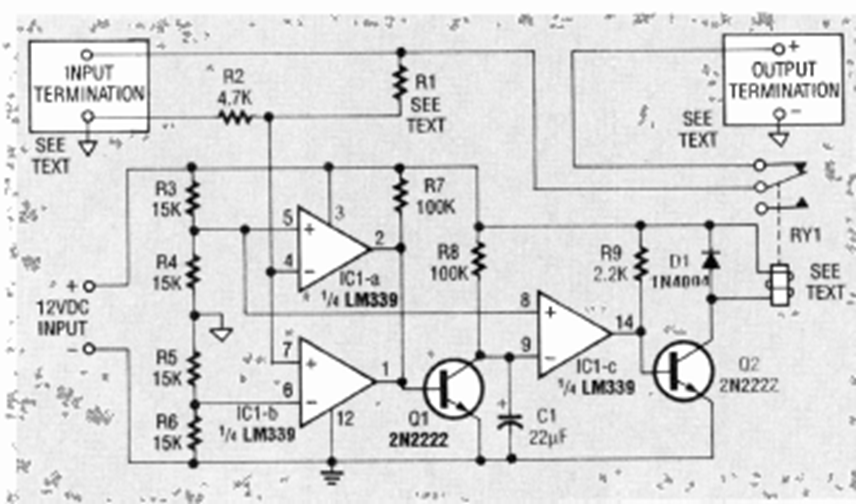

This circuit protects the speaker from dangerous direct currents that could damage it. The circuit is from an Electronics Experimenter Handbook 1993 edition.
