Electrifier (CB26135E)

Details
Written by: Newton C. Braga

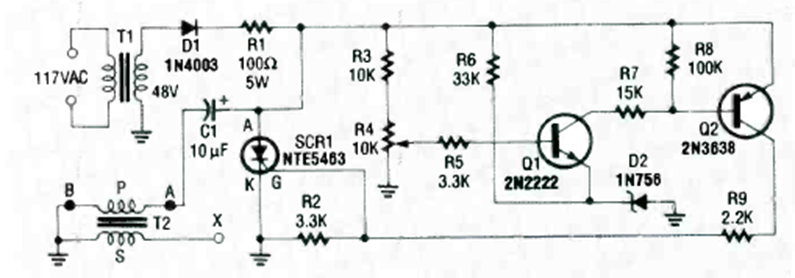

This circuit was obtained from the Radio Electronics Experimenter magazine in a special edition of 1990. The circuit generates high voltage discharges.




| Clique na imagem para ampliar |
