FM Ad Eliminator (CB25038E)

Details
Written by: Newton C. Braga

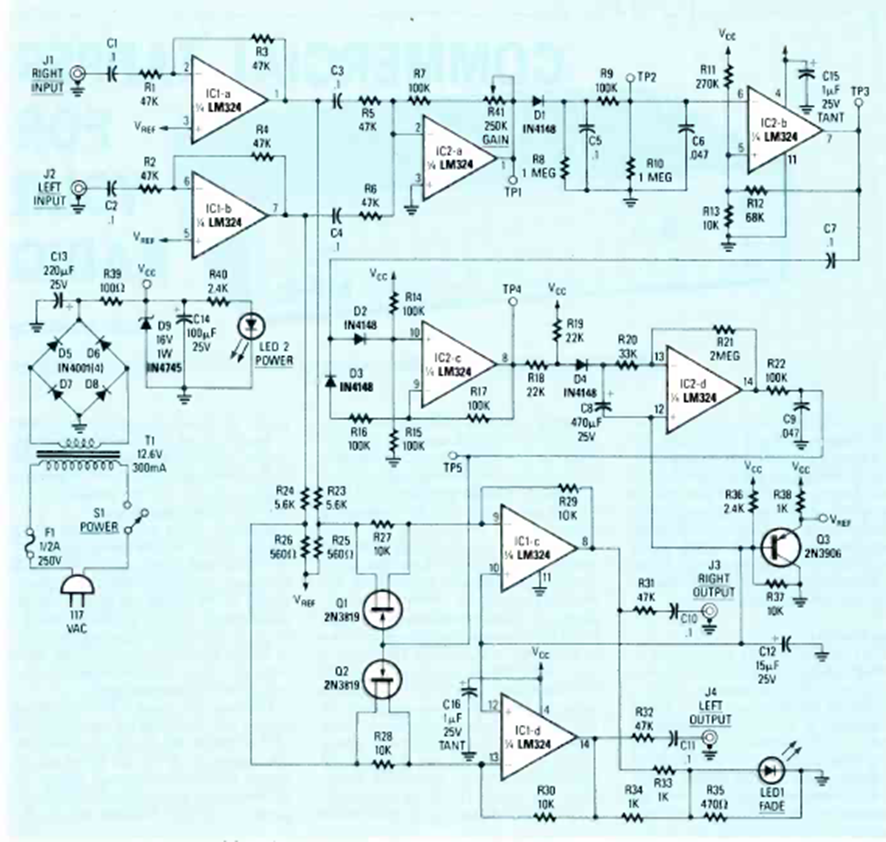

This circuit cuts out ads between songs, based on the fact that the speech signal has small interruptions that can be detected. The circuit is from a Radio Electronics from April 1987.






| Clique na imagem para ampliar |
