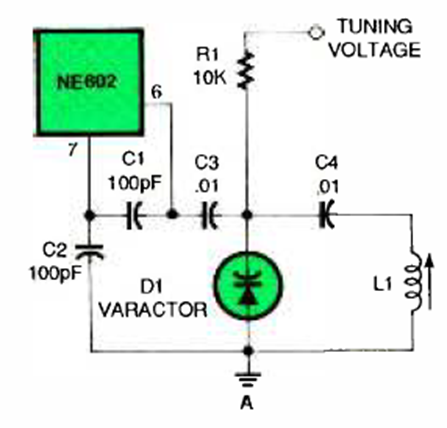

In the figure we have the way to control the frequency of an oscillator with a NE602 using a varicap and an external voltage. The circuit is from an Electronics Now magazine from February 1997.
VFO with NE602 (CB26006E)
- Details
- Written by: Newton C. Braga
