Automotive Tachometer (CB26283E)

Details
Written by: Newton C. Braga

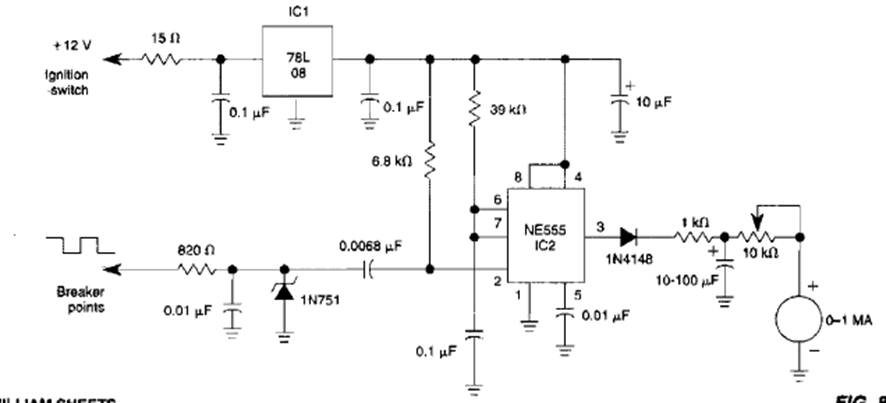

This analog instrument circuit was found in a 1990s William Sheets. The components are common and are only suitable for cars with mechanical switching (platinum).




| Clique na imagem para ampliar |
