Function selector (CB25012E)

Details
Written by: Newton C. Braga

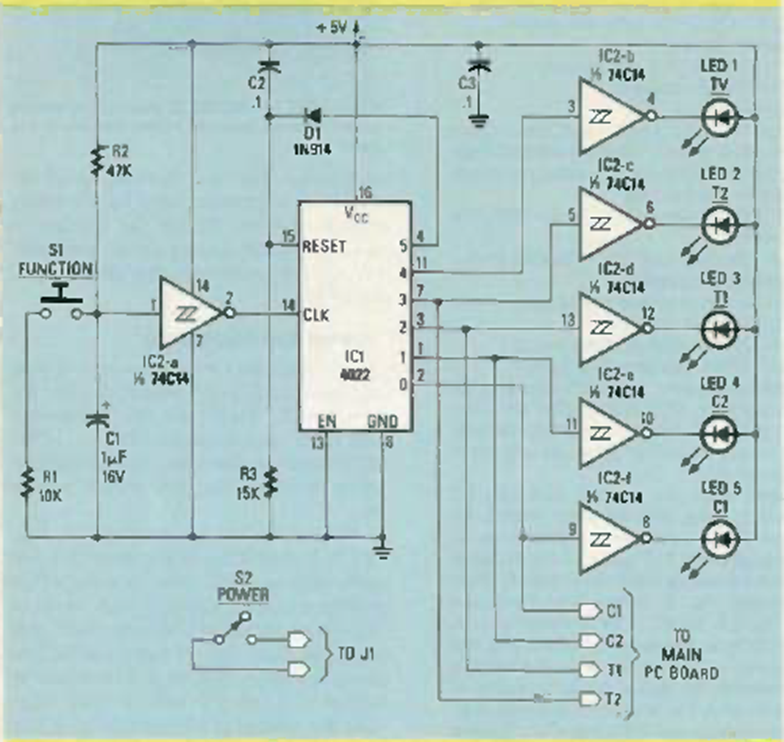

Found in the December 1986 issue of Radio Electronics magazine, this circuit is designed to select 4 outputs with pulses from a pressure switch. The circuit includes LED indication.
