Laser Transmitter (CB26152E)

Details
Written by: Newton C. Braga

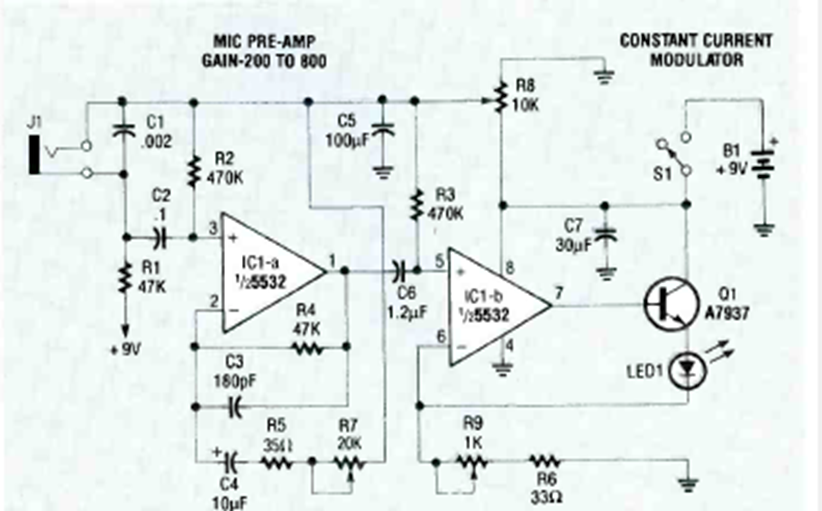

This modulated transmitter for a light beam communication system was found in the 1991 Electronics Experimenter Handbook. The circuit modulates a LASER diode.




| Clique na imagem para ampliar |
