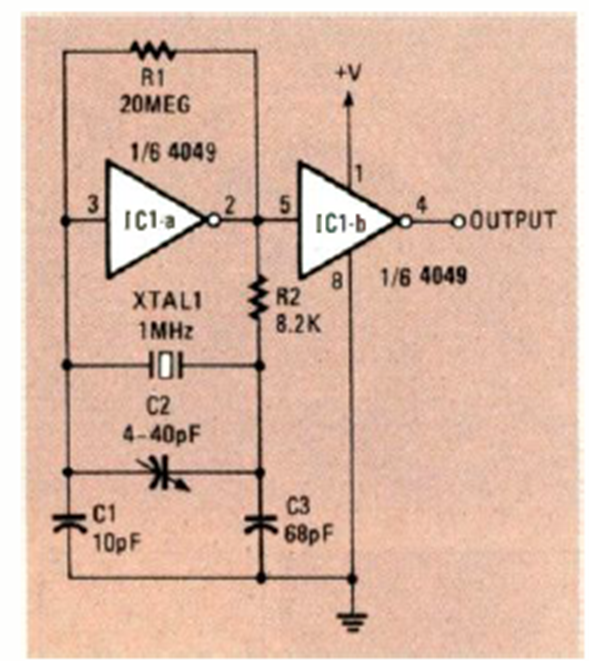

This circuit is from Radio Electronics from February 1987. The frequency is given by the crystal that can be changed. The power supply is between 3 and 12 V depending on the purpose of the circuit.
CMOS Oscillator (CB25040E)
- Details
- Written by: Newton C. Braga
