Optical Isolator Test (CB26107E)
- Details
- Written by: Newton C. Braga

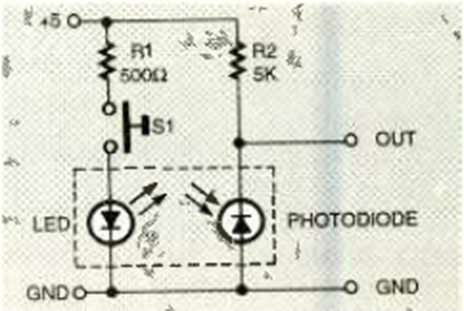

The figure shows a simple test circuit for optical isolators with photodiodes. The circuit was suggested by the magazine Electronics Now of November 1999.
