Modulated LASER Receiver (CB26153E)

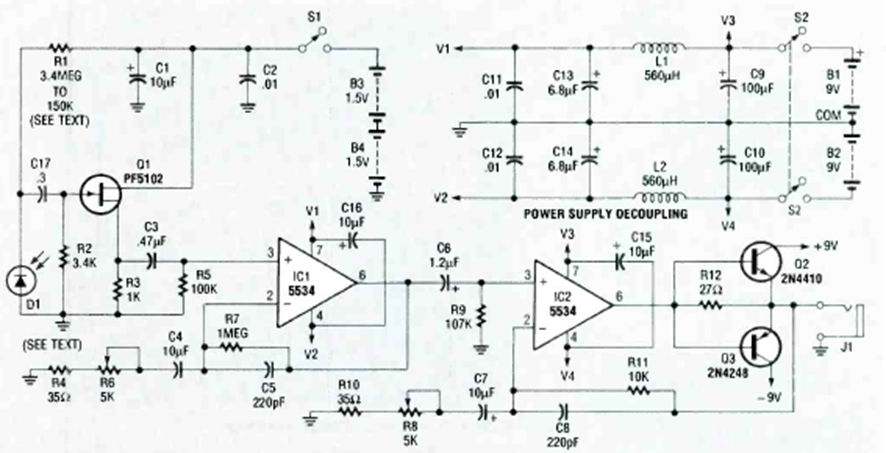

This is the receiver circuit for the transmitter of the previous circuit or others of the same type. The circuit is from the Electronics Experimenter Handbook of 1991. Optical resources must be used for greater sensitivity.
| Clique na imagem para ampliar |
