Classic Buzzer (CB26048E)

Details
Written by: Newton C. Braga

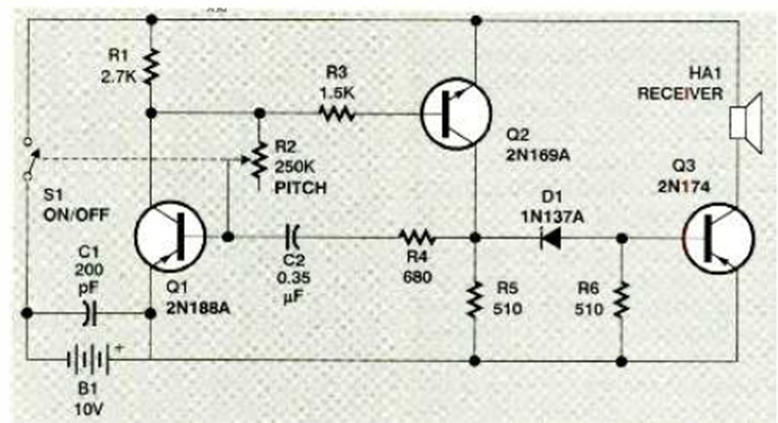

This 3-transistor buzzer or buzzer is a classic type found in the July 1998 issue of Electronics Now magazine. The power rating depends on the output transistor.




| Clique na imagem para ampliar |
