Digital Timer (CB26205E)

Details
Written by: Newton C. Braga

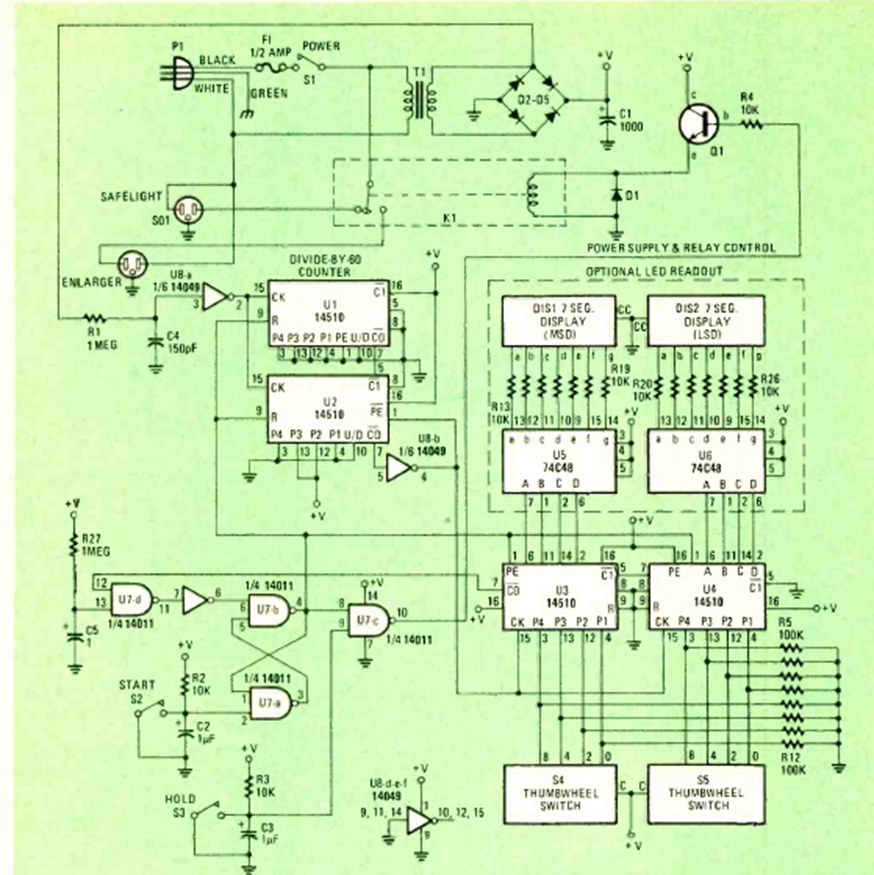

This two-digit timer was found in the 1983 Special Projects issue of Radio Electronics magazine. The circuit uses components that can still be found today.
