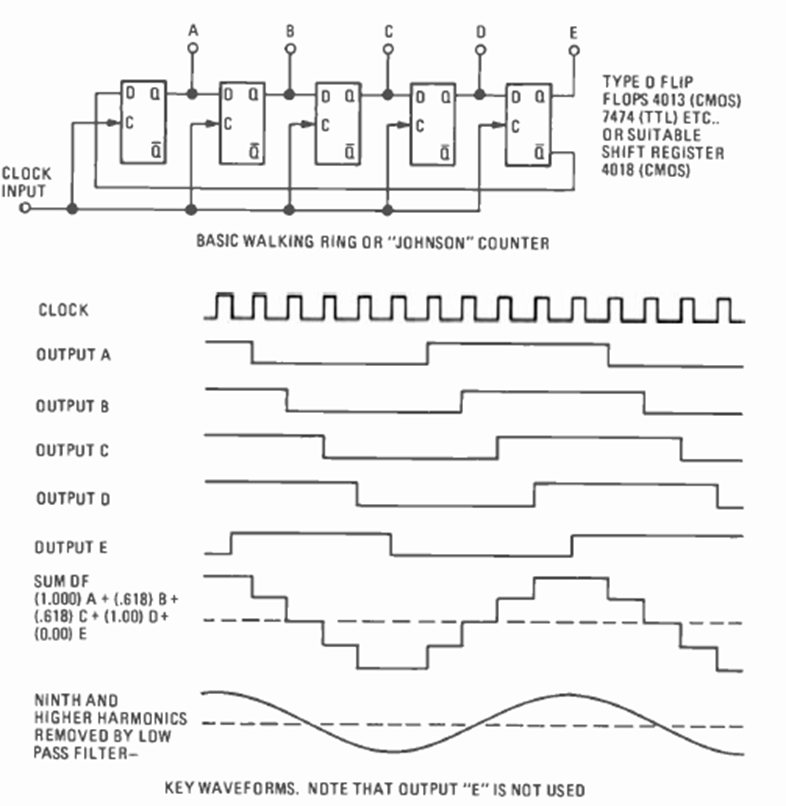

The figure shows how to associate flip-flops in a shift register to obtain a lower frequency sinusoidal signal. The circuit is from a Radio Electronics from November 1976.
| Clique na imagem para ampliar |
Digital sinusoidal generator (CB24473E)
