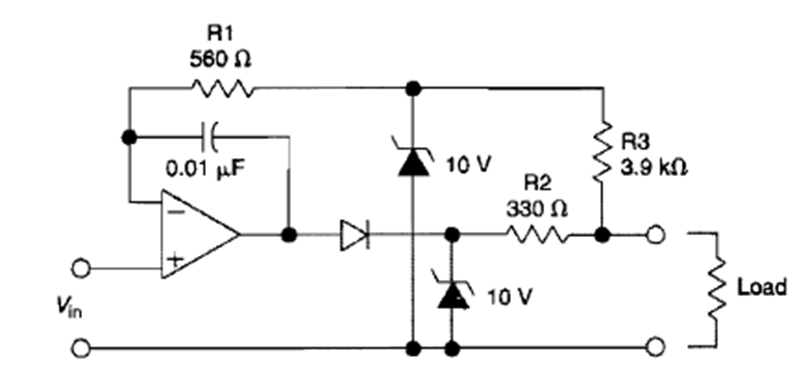

We found this protection circuit for op amps in the Encyclopedia of Electronic Circuits Volume 5 from 1995. The circuit protects against excessive current or voltage in the load circuit.
| Clique na imagem para ampliar |
Current and Voltage Protector for Op Amp (CB26256E)
