Sewing Machine Control (CB26032E)

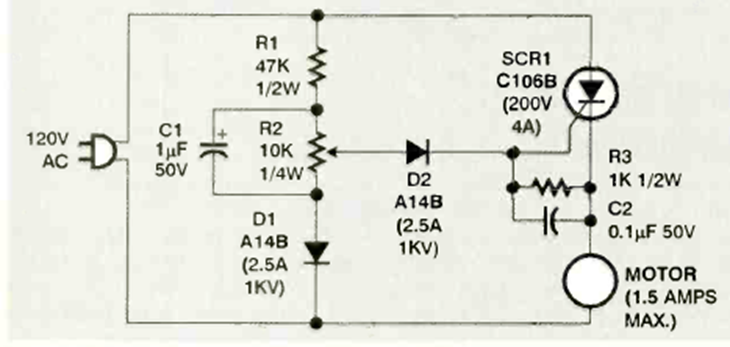

This sewing machine motor control was found in the December 1997 Electronics Now magazine. The half-wave circuit uses a 106-type SCR.
