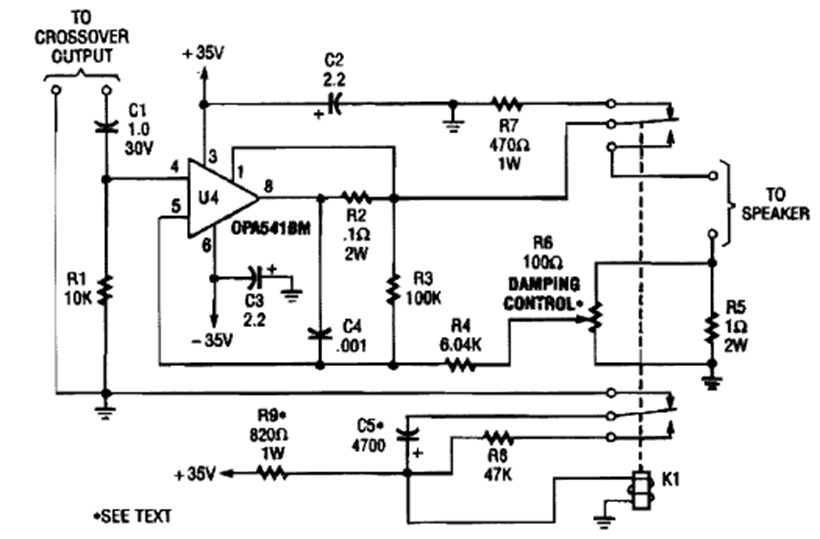

Found in a Popular Electronics from the 90s, this circuit provides 100 W of power. The power supply is from a 25V source and the integrated circuit must be equipped with a heatsink.
| Clique na imagem para ampliar |
Subwoofer Amplifier (CB26271E)
- Details
- Written by: Newton C. Braga
