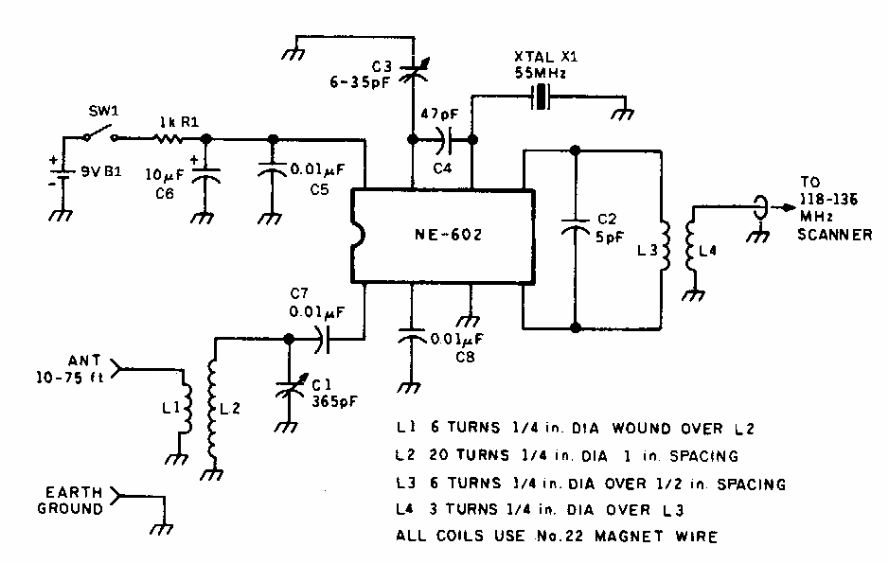

This circuit converts signals from the shortwave band to the 118 to 130 MHz VHF band used in aviation. The circuit uses a 55 MHz crystal. We found it in documentation from the 90s.
| Clique na imagem para ampliar |
Shortwave Converter (CB21231E)
- Details
- Written by: Newton C. Braga
